Aerodynamics Collection

Sud Aviation Caravelle wing box structure. Diagram from: European Aeronautical Congress report Caravelle Wing Aerodynamics by Jacques Lecarme

Heinkel He 162A-2 VH515
Royal Aircraft Establishment - Heinkel He 162A-2 VH513 (Werknummer 120227, Air Min 65), (marked as Red 2 of 2/JagdGeschwader 1 when it was captured)

Avro 594 Avian 3A / IIIA
Avro Avian with Slotted Leading-Edge Wing Slats in a Stalled Landing at Woodford During Test-Flights Date: 1928

Gotha WD-10 German single-seat naval fighter biplane designed by Oskar Ursinus, seen here with floats retracted, thus improving its aerodynamic effect

Where the RAF fighters score by G. H. Davis
Aerodynamic cleanliness: where the RAF fighters score during the Second World War. In very high speed aircraft small projections and even rough surface paint may seriously reduce speed

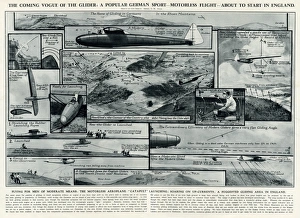

A popular new sport, the glider, by G. H. Davis
The coming vogue of the glider. A popular German sport -- motorless flight -- about to start in England. Flying for men of moderate means: the motorless aeroplane -- catapult launching

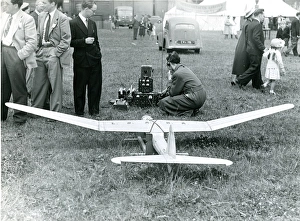

Radio-controlled model sailplane designed and built by t?
Radio-controlled model sailplane designed and built by the Low Speed Aerodynamics Research Association at the 1952 Royal Aeronautical Society Garden Party at White Waltham Aerodeome on 15 June

NPL Wind Tunnel Experiment
NPL wind tunnel experiments with a model LNER locomotive. Date: 1932
